Multi-Zone Heat Pump Systems

It's tempting to size a multi-zone outdoor unit by simply adding up the capacity of every room it will serve, but manufacturers rate multi-zone condensers with a combination ratio in mind — the outdoor unit is not expected to run every zone at its full rated capacity simultaneously. Getting this wrong in either direction either leaves the system unable to keep up when several rooms call for heat at once on a cold morning, or leaves it oversized and short-cycling most of the year when only one or two zones are actually calling.

The starting point is the same room-by-room load calculation used for a single-zone job, done for every room the system will serve, before the outdoor unit and combination of indoor heads gets selected.

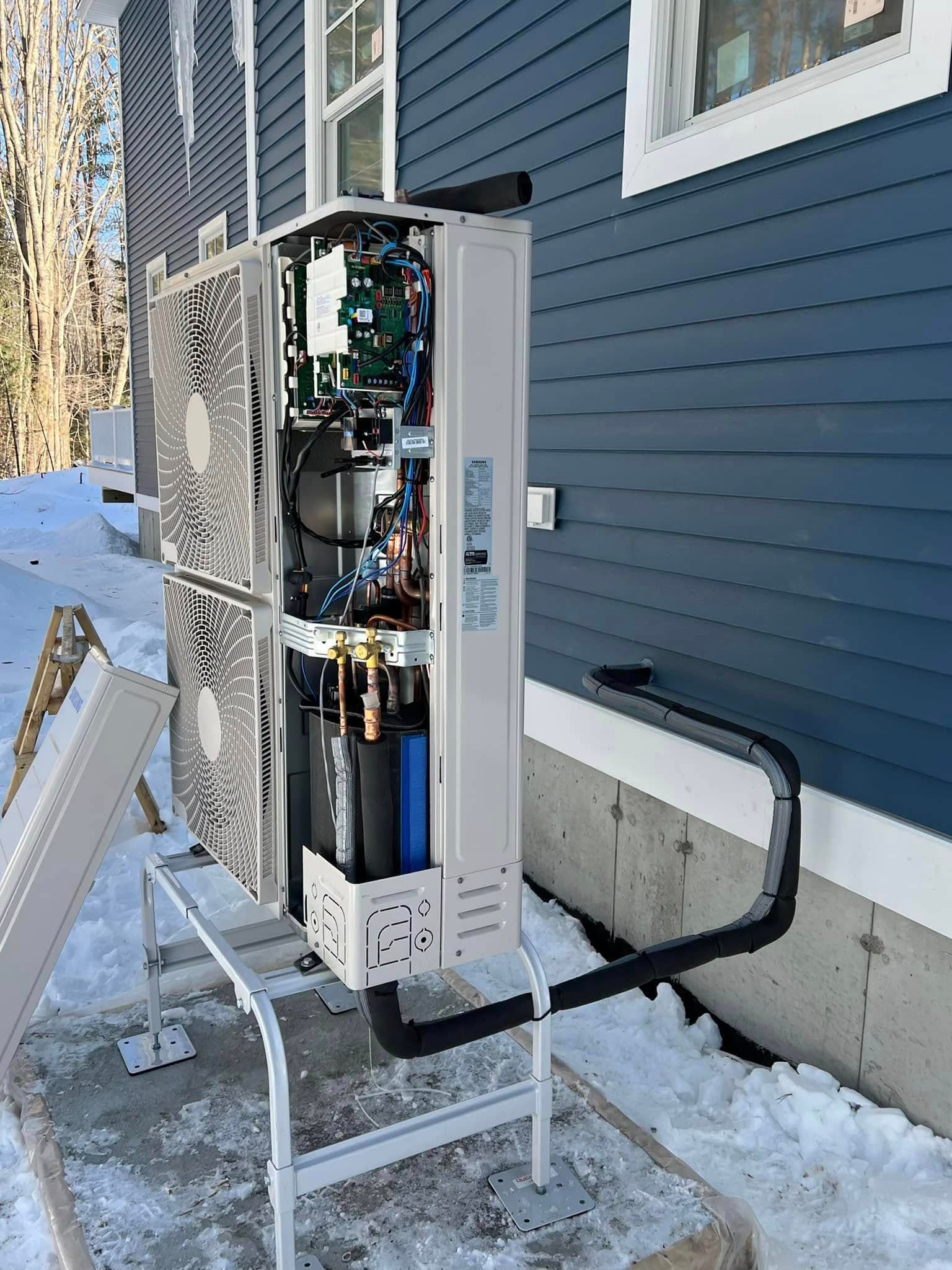

Refrigerant leaves the outdoor unit through a single line set to a branch fitting (sometimes called a refnet joint), which is what actually splits flow to each indoor head's own line set. That fitting, and the line-set lengths and elevation changes to each head from it, are part of what the manufacturer's engineering data constrains — a run that's too long, or a joint placed incorrectly, can starve one zone while another performs fine.

Each indoor head on a residential multi-zone system runs its own thermostat and fan speed, and can be switched off entirely while the others keep running. Most residential multi-zone lines, unlike larger commercial VRF equipment, run in one mode at a time across the whole outdoor unit — every zone heats, or every zone cools, rather than one room heating while another cools simultaneously. That distinction matters if a household wants a room actively cooled while the rest of the house is heating; it's worth asking about at the quote stage rather than assuming.
